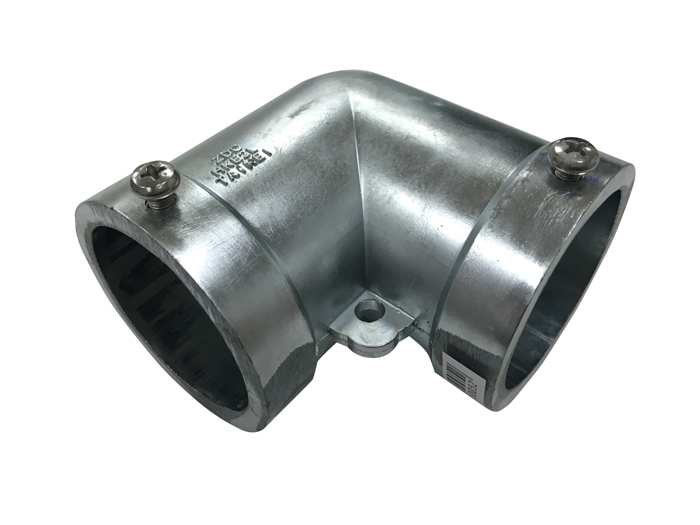

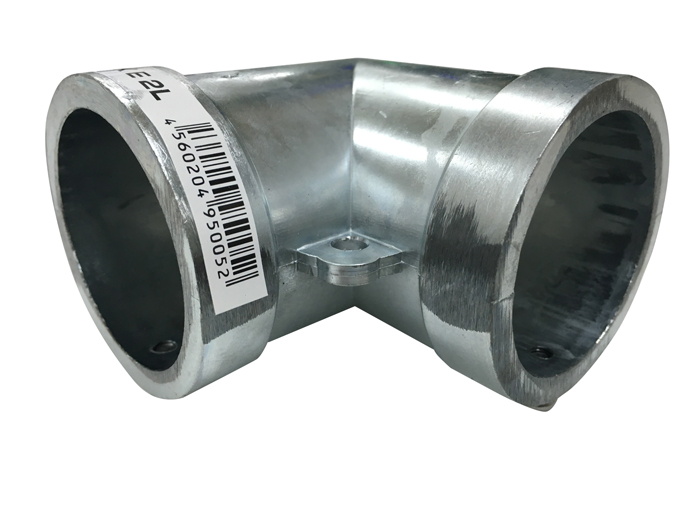

コーナーL継ぎ HKE2L アルインコ 単管用パイプ(単管48.6mm用)ジョイント
商品コード NJ0002
販売価格 1,900 (税別)
タイプ コーナーL継ぎ
寸法(mm) 90×61×90
注意

ドブメッキパイプでの施工はパイプが穴に通らない場合がございますのでご注意下さい。

【送料】別途
数量:
商品特徴・詳細仕様
商品の特徴
市販されている単管パイプ(単管48.6mm用)をつなぐ、ジョイント金具です。 アイデアしだいで、手すり・柵・檻・塀・ガードレール・フェンス・作業台・棚・車止め・看板・小屋・ビニールハウスなど さまざまなものが簡単に構築できます。

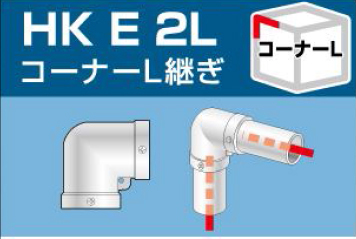

使用例
商品仕様 タイプ コーナーL継ぎ
寸法(mm) 90×61×90
注意

ドブメッキパイプでの施工はパイプが穴に通らない場合がございますのでご注意下さい。

材質 亜鉛合金、表面処理、電気メッキ(ユニクロ)
止め方 標準は、+ナベ頭(M5-8mm)SUS(304)の1本止め。
締め付け ビスがパイプに到達してから1~2回転させると最適な締め付けになります。
引き抜き荷重 135kgf
商品図面
カタログ
JANコード 4560204950052
関連カテゴリ
備考(注意事項) 安全のために、必ずお守りください。
警告:
・組立完了後は、必ずボルトやビスの締まりを確認してください。ボルトやビスがゆるんでいると重大な事故を引き起こす原因になります。
・設計・製作は十分に安全性を考慮した上で行ってください。人が上に乗ったり、ぶら下がったりするような台や足場・はしごなどは製作しないでください。
注意:
・切断したパイプの切り口は、バリが出て手・指などを傷つける恐れがあります。パイプ切断口は必ず面取り器やヤスリなどで削り、バリを取ってください。
・パイプをジョイントにはめ込みビスを締める際(標準)、ビスがパイプにあたるとやや重くなりますが、さらに1回転締めると最適な締め付けになります。
締め付けがゆる過ぎたり、きつ過ぎたりしないよう注意してください。
